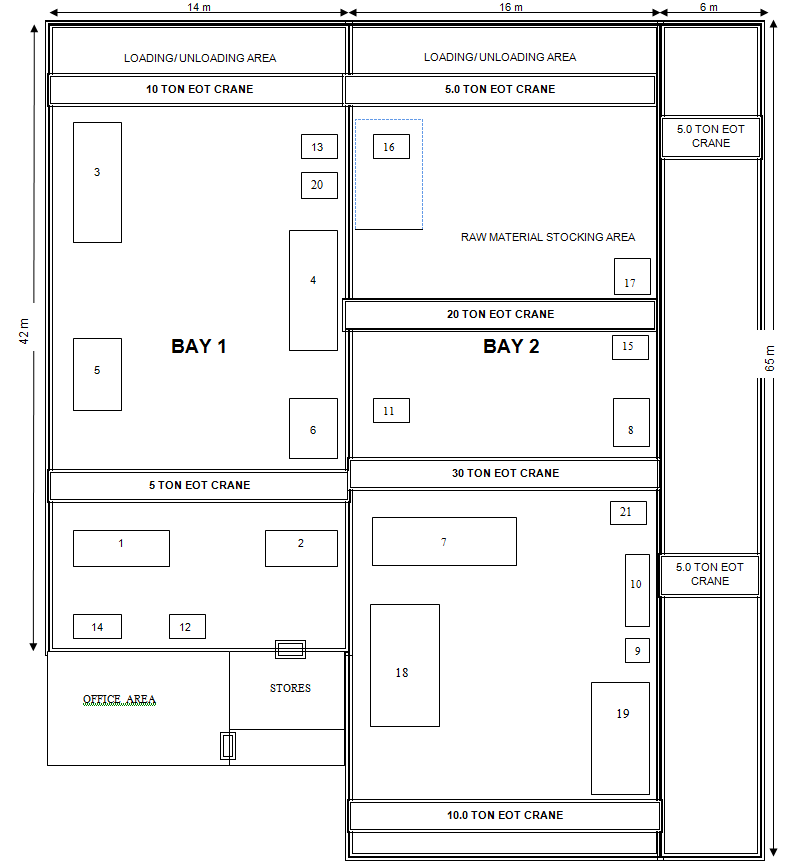

WORKSHOP LAYOUT
Plot Area: 3900 sq. mtrs.







1. Press 500 MT 2 . Press 100 MT 3. Press 600 MT 4. Plate Bending M/c (32 thk) 5. Pipe Bending M/c 6. Pipe Bending M/c 7 . Press 1000 MT 8 . Plasma Cutting M/c 9, 11,12,13. Welding Rectifier (400 Amp.) 10,14 . Electric Distribution Panel (200 HP) 15, 16. Welding Rectifier (600 Amp.) 17 . Submerged Arc Welding M/c 18. Press 2000 MT 19. Plate Bending M/c (80thk) 20, 21 . Welding Rectifiers (600 Amp)




LIST OF MANUFACTURING FACILITIES
(Machines, Equipments, Material Handling, Heat Treatment & Power sources)





SR.

MACHINE

MAKE

TYPE/ CAP. / SIZE

MAX JOB SIZE

QTY.

1

Press

RAJENDRA

Hydraulic; 100 MT;
2500 span

2500 Dia. D/End x 12 mm Thk

01

2

Press

HALOL

Hydraulic; 500 MT;
5000 span

4800 Dia. X 45 mm Thk

01

3

Press

HALOL

Hydraulic; 600 MT;
5300 span

5100 Dia. X 56 mm Thk

01

4

Press

HALOL

Hydraulic;1000 MT;
5600 span

5300 Dia. X 90 mm Thk

(C&P type: upto 110 Thk)

01

5

Press

RAJENDRA

Hydraulic; 2000 MT;
5000 Span

4800 Dia. X 140 thk

(C&P type: upto 160 thk)

01

6

Plate bending

Assembled

3 roller –Sezi-automatic; 2500 wide

ID range: 480 to 4000
2500 L: Max 32 Thk
2000 L: Max 36 Thk
1500 L: Max 40 Thk

01

7

Plate Bending

Assembled

3 roller- Hydraulic
2500 wide

ID range 750 to 4000
2500L: Max.70 Thk
2000L: Max.80 Thk
1500L: Max.90 Thk

01

8

Pipe rolling

Assembled

3 roller –Vertical;
6” NB pipe

CLR = 10*D & above

01

9

Pipe coiling

Assembled

3 roller- Vertical Section Rolling; ½” NB to 5” NB

PCD = 10*D & above

01

10

Tube bending

Assembled

2 roller- Horizontal; ½” NB to 1 ½ ” NB

CLR=2D & above

01

11

Welding M/c

Memco

SMAW; 400 Amp.

-

06

12

Welding M/c

Memco

SMAW; 600 Amp.

-

04

13

Welding M/c

Memco

Submerged Arc Welding; 1200 Amp.

-

01

14

TIG welding m/c

Arcraft

GTAW; 400 Amp.

-

01

15

MIG welding m/c

Panasonic

400 Amp

-

02

16

Plasma cutting

Arcraft

SS sheet cutting

50 mm thk.

01

17

Modular Furnace (PORTABLE)

Indotherm

Oil fired, Top Hat
2000 x 2000 x 1200 HT

Max. 10 Ton wt.

01

18

Heating Furnace
(Permanent)

Indotherm

Oil fired, Top Hat
4500 x 4500 x 1800 HT

Max. 25 Ton wt.

01

19

EOT Crane

ATLAS ADCO

20.0 Ton

7.0 mtr Max. lift

01

20

EOT Crane

RECKON

30.0 Ton

7.0 mtr Max. lift

01

21

EOT Crane

Assembled
OMEGA

10.0 Ton
10.0 Ton

7.0 mtr Max. lift

02

22

EOT Crane

Assembled

5.0 Ton

7.0 mtr Max. lift

06

23

Power supply

MSEB

360 KVA
@ 22kV HT supply



01

24

Captive Power
(D. G. set)

Ashok Leyland

320 KVA



01
